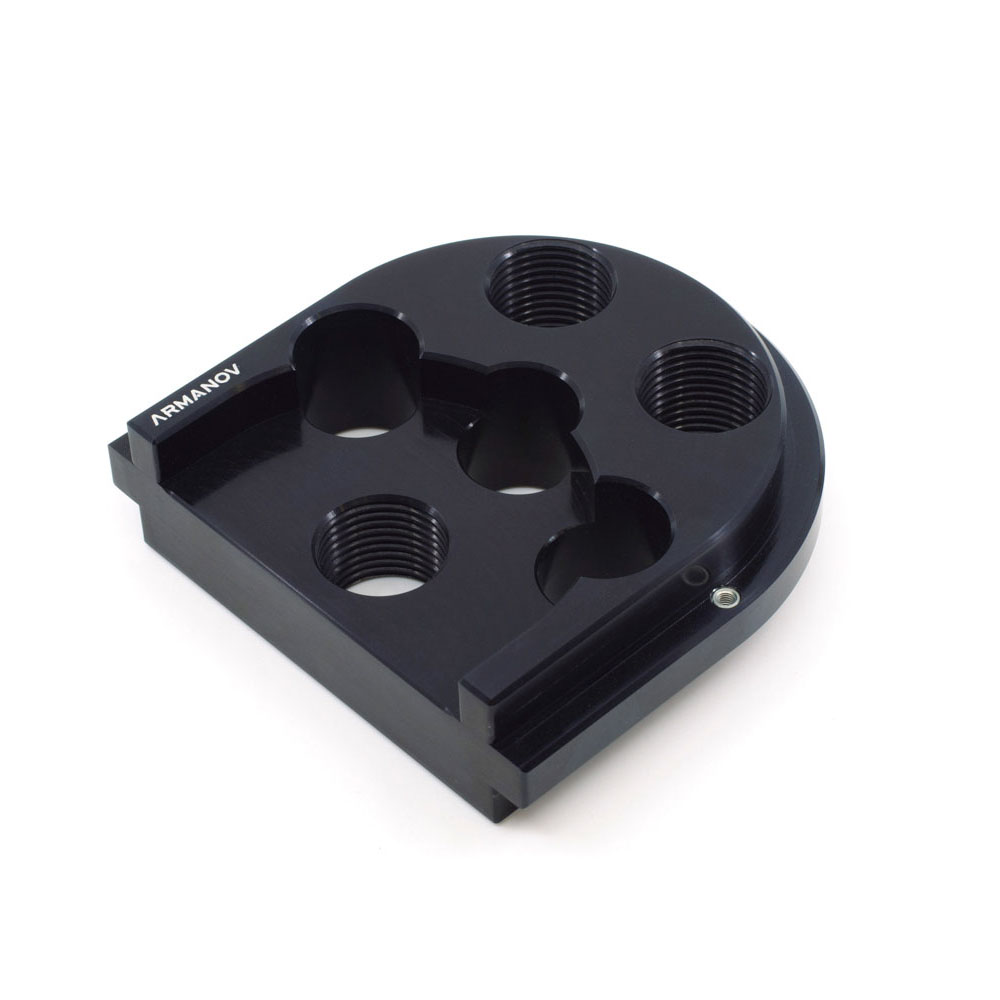

The Short Trim Zero-Play toolhead is designed to be securely mounted in its uppermost position in the frame of the press by 2 M3 bolts instead of the original Dillon Pins. This enables very precise cuts and limits the amount of moving variables that could affect the precision of cut. It features a deep cut that allows short trim dies to be seated lower and allow trimming also very short cases like 300AAC.
Zero-Play System
When you cycle cases downward, the toolhead does not move, and cases go out in a straight line. Best practice is to loosen M3 bolts slightly before inserting the index shell-plate with case into dies and tightening M3 bolts to the toolhead's best position.
Compatibility
Dillon XL650
Dillon XL750
This toolhead is required for use with RT1500 Electric Case Trimmer.
This combination is commonly used to trim 300 AAC Blackout on the XL650 & XL750.
Armanov Short Trim Die Toolhead for Dillon XL650 / XL750 replaces original Dillon part 62112.
What comes in the Box?
1 x Aircraft-Grade Anodized
Aluminium Toolhead
1 x Hex Key 2.5 mm
2 x Bolts M3 x 20 & Washers
1 x Caliber Sticker
Due to use of high tensile strength aluminum which is harder to anodize,
slight color inconsistencies may occur.
